Bixolon

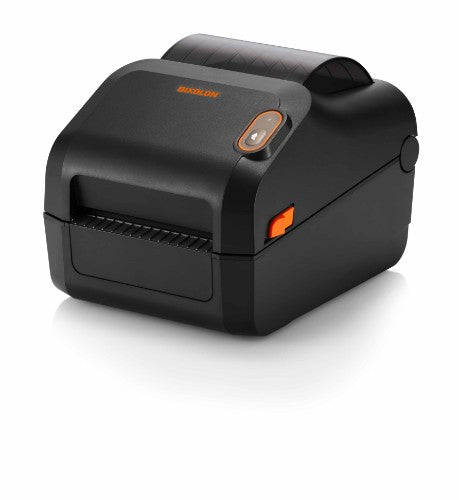

Bixolon XD3-40d label printer Direct thermal 127 mm/sec Wired

SKU XD3-40DEK/BEG
£172.73
£172.73
In stock 131 left

Bixolon

Bixolon XD3-40d label printer Direct thermal 127 mm/sec Wired

SKU XD3-40DEK/BEG
£172.73
Bixolon XD3-40d label printer Direct thermal 127 mm/sec Wired

XD3-40d, 8 dots/mm (203 dpi), EPL, ZPLII, USB, RS232, Ethernet, black

Description

The XD3-40d is a 4-inch (118mm) Direct Thermal Desktop Barcode and Label Printer featuring a compact design, key industry features and competitive pricing, ideal for labelling applications within Manufacturing, Retail, Warehousing and Logistics markets. The XD3-40d standard model offers quick data processing and print speeds up to 5 ips (127mm/sec) at 203 dpi to produce high quality text, graphics and barcodes to labelling media.

Supporting a stand-alone configuration with a visual LED and a media roll diameter up to 127mm. The XD3-40d offering easy paper loading with adjustable paper guide and plus holder, alongside an optional peeler, plus an external paper supply. For added simplicity, the label printer also offers simple toolless maintenance of the roller and print head.

Available with USB interface as standard and optional USB V2.0 + Serial + Ethernet. The XD3-40d is compatible with market-leading programming languages including SLCS, BPL-Z™ and BPL-E™, while supporting Smart Switch Programming Languages to allow for seamless integration into legacy and current installations. The XD3 series is also accompanied with comprehensive SDKs for Windows and Linux, alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®. While backed by a 2 year warranty as standard.

Specifications

Print quality
Maximum printing width 10.4 cm
Printing
Minimum print length 100 cm
Print speed 127 mm/sec
Maximum printing width 10.4 cm
Print technology Direct thermal
Memory
Internal memory 64 MB
Flash memory 128 MB
Paper handling
Ribbon width 11 cm
Ribbon length 300 m
Media thickness 0.06 - 0.2 mm
Maximum roll diameter 12.7 cm
Maximum label width 11.8 cm
Ports & interfaces
Connectivity technology Wired
USB port Yes
Performance
Built-in barcodes 1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 39, EAN13, EAN8, GS1-128, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, QR Code, TLC39, UPC-A, UPC-E
Ribbon width 11 cm
Ribbon length 300 m
Internal memory 64 MB
Flash memory 128 MB
Page description languages BPL
Design
Product colour Black
Power
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Technical details
Windows operating systems supported Yes
Product colour Black
Built-in barcodes 1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 39, EAN13, EAN8, GS1-128, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, QR Code, TLC39, UPC-A, UPC-E
Ribbon width 11 cm
Ribbon length 300 m
Maximum label width 11.8 cm
Harmonized System (HS) code 84433210
System requirements
Linux operating systems supported Yes
Windows operating systems supported Yes
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Width 181 mm
Depth 222 mm
Height 168 mm
Weight 1.7 kg
Logistics data
Harmonized System (HS) code 84433210
