Bixolon

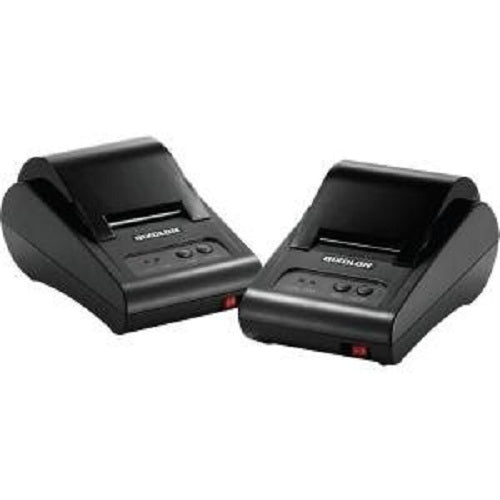

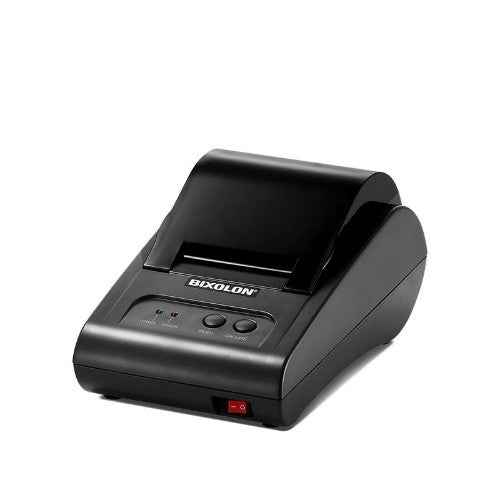

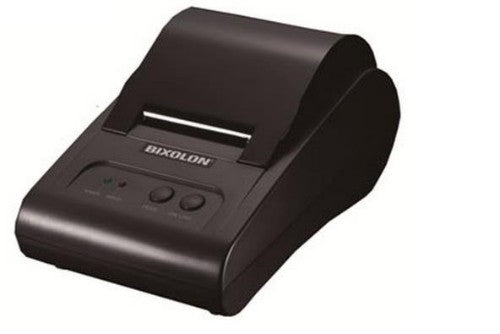

Bixolon STP-103III Wired Direct thermal POS printer

SKU STP-103III/IFL
£103.60
£103.60
Only 5 left

Bixolon

Bixolon STP-103III Wired Direct thermal POS printer

SKU STP-103III/IFL
£103.60
Bixolon STP-103III Wired Direct thermal POS printer

Direct Thermal, 203dpi, 80mm/sec, 64Mbit SDRAM, 16Mbit Flash, USB 2.0, Serial Port, Parallel Port, 450g

Description

Dual-interface
- USB + Serial
- USB + Parallel
- Serial to Parallel cable included

Upgraded Performance
- Printing speed up to 80 mm/sec (15% faster than the STP-103II)
- Reduced standby power consumption (65% less than STP-103II)
- Extended buffer capacity supported with higher-level CPU

Specifications

Printing
Type POS printer
Print technology Direct thermal
Print speed 80 mm/sec
Character size 24 x 24 mm
Performance
Type POS printer
Print technology Direct thermal
Print speed 80 mm/sec
Character size 24 x 24 mm
Built-in barcodes Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, ITF, PDF417, QR Code, UPC-A, UPC-E
Paper handling
Media types supported Receipt
Media thickness 0.062 - 0.075 mm
Supported paper width 57.5 mm
Maximum roll diameter 6 cm
Maximum printing width 4.8 cm
Ports & interfaces
Interface USB V2.0 FS + Serial USB V2.0 FS + Parallel
Standard interfaces Parallel, Serial, USB 2.0
Connectivity technology Wired
USB 2.0 ports quantity 1
Serial ports quantity 1
Parallel ports quantity 1
Bluetooth No
USB port Yes
USB connector USB Type-B
Parallel connector Yes
Serial interface Yes
Network
Ethernet LAN No
Wi-Fi No
Print technology
Type POS printer
Print technology Direct thermal
Print speed 80 mm/sec
Character size 24 x 24 mm
Print quality
Maximum printing width 4.8 cm
Technical details
Bundled software Windows Driver, OPOS Driver, JPOS Driver, Linux CUPS Driver, Mac Driver, Virtual COM USB Driver, Utility Program
Storage media type Flash
Media types supported Receipt
Media thickness 0.062 - 0.075 mm
Interface USB V2.0 FS + Serial USB V2.0 FS + Parallel
Built-in sensors details Paper End, Paper Near End, Cover Open
Maximum printing width 4.8 cm
RAM capacity 256 KB
Product colour Grey
Built-in barcodes Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, ITF, PDF417, QR Code, UPC-A, UPC-E
Buffer size 64 KB
Features
Media types supported Receipt
Media thickness 0.062 - 0.075 mm
Built-in sensors details Paper End, Paper Near End, Cover Open
LED indicators Yes
RAM capacity 256 KB
Flash memory 16 MB
Product colour Grey
Built-in barcodes Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, ITF, PDF417, QR Code, UPC-A, UPC-E
Storage media Flash
Design
Product colour Grey
Memory
Storage media type Flash
RAM capacity 256 KB
Flash memory 16 MB
Buffer size 64 KB
Storage media Flash
Power
AC input voltage 100-240 V
AC input frequency 50 - 60 Hz
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Storage relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 45 °C
Operating relative humidity (H-H) 10 - 80%
Weight & dimensions
Width 116 mm
Depth 90 mm
Height 180 mm
Weight 450 g
Packaging data
Bundled software Windows Driver, OPOS Driver, JPOS Driver, Linux CUPS Driver, Mac Driver, Virtual COM USB Driver, Utility Program
Cables included Serial
Packaging content
Cables included Serial
Quick start guide Yes
AC adapter included Yes
Drivers included Yes
Software
Bundled software Windows Driver, OPOS Driver, JPOS Driver, Linux CUPS Driver, Mac Driver, Virtual COM USB Driver, Utility Program
Indication
LED indicators Yes
Other features
Storage media type Flash
Media types supported Receipt
LED indicators Yes
Buffer size 64 KB
