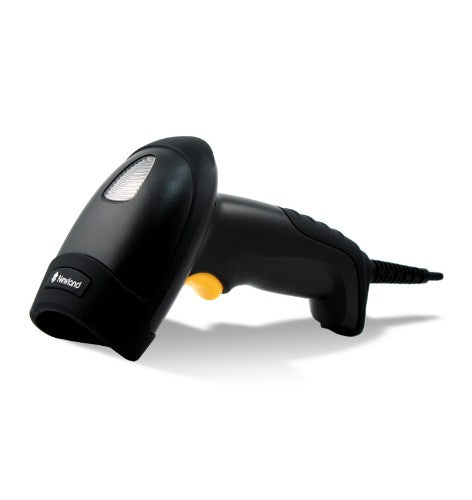

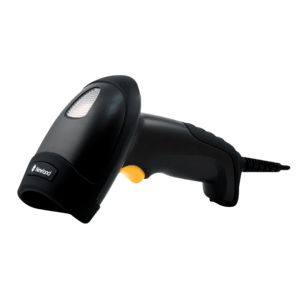

Newland NLS-HR1550-35F barcode reader Handheld bar code reader 1D CCD Black

SKU NLS-HR1550-35F
£53.22
£53.22
Only 15 left

Newland

Newland NLS-HR1550-35F barcode reader Handheld bar code reader 1D CCD Black

SKU NLS-HR1550-35F
£53.22
Newland NLS-HR1550-35F barcode reader Handheld bar code reader 1D CCD Black

HR1550, 1D, Handheld, CCD 2500, Red LED (620nm), 300 scans/second, IP54, 1.5m Drop, USB, RS232

Description

The HR15 Wahoo handheld scanner is the corded model of HR15 Wahoo series and comes with a coiled cable. This model supports standard RS-232 / USB / PS2 PC interface.

Enables all day scanning comfort to protect productivity in scan-intensive applications.
The HR15 Wahoo corded handheld scanner presents a rugged and compact solution for use in supermarkets, shopping malls and warehouse environments.

Data Acquisition.
The HR15 Wahoo Corded handheld scanner is the corded model of HR15 Wahoo series and comes with a coiled cable. It supports common 1D barcodes and PDF417 and MicroPDF417 stacked 2D barcodes.

Lightweight ergonomic design.
This corded handscanner lies comfortably in your hand and enables all day scanning comfort in scan-intensive situations. This helps reduce fatigue and protects the workforce productivity.

Interface.
The HR15 Wahoo Corded supports standard RS-232 / USB / PS2 PC interfaces.

Durable Construction.
The HR15 Wahoo Corded was created to perform in harsh and demanding environments. With a sealing of IP54, this handheld scanner is protected against dust and moisture. With a drop resistance of 1.5m, it can withstand everyday drops and bumps.

Application scenarios.
With good performance, this rugged and compact scanner is suitable for applications in supermarkets, shopping malls, warehouse environment application and more.

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported Codabar, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, ISBN, Interleaved 2 of 5, PDF417, UPC-A, UPC-E
Working distance 46.5 cm
Sensor type CCD
Scanner type 1D
Read rate (max) 300 reads/s
Pitch reading angle -55 - 55°
Ports & interfaces
Connectivity technology Wired
Standard interfaces RS-232, USB
Performance
Protection features Bump resistant, Dust resistant, Moisture resistant
LED indicators Notification
Housing material Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
International Protection (IP) code IP54
Product colour Black
Certification FCC Part15 Class B, CE EMC Class B,RoHS, IEC62471,KC
Buzzer Yes
Design
Type Handheld bar code reader
Protection features Bump resistant, Dust resistant, Moisture resistant
LED indicators Notification
Housing material Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
International Protection (IP) code IP54
Product colour Black
Certification FCC Part15 Class B, CE EMC Class B,RoHS, IEC62471,KC
Power
Power consumption 135 mA
Power source type DC
Input voltage 5 V
AC adapter output voltage 100-240 V
Weight & dimensions
Width 113.5 mm
Depth 73 mm
Height 159 mm
Weight 152 g
Technical details
Type Handheld bar code reader
Protection features Bump resistant, Dust resistant, Moisture resistant
LED indicators Notification
Housing material Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
International Protection (IP) code IP54
Product colour Black
Certification FCC Part15 Class B, CE EMC Class B,RoHS, IEC62471,KC
Buzzer Yes
Packaging data
Cables included RS-232, USB
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) -20 - 50 °C
Operating relative humidity (H-H) 5 - 95%
Packaging content
Cables included RS-232, USB
