Newland

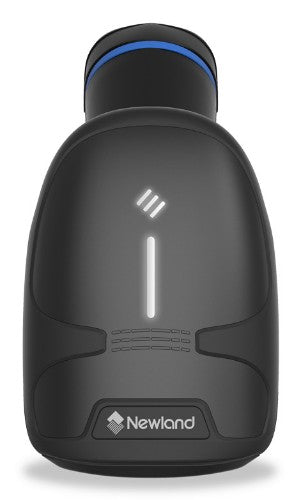

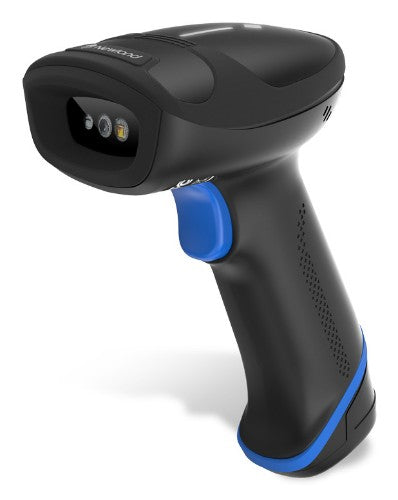

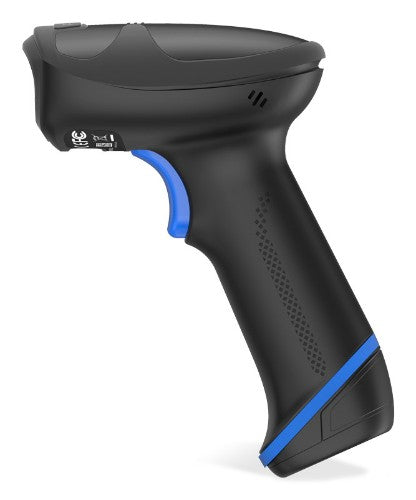

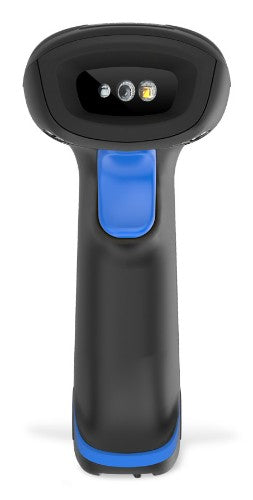

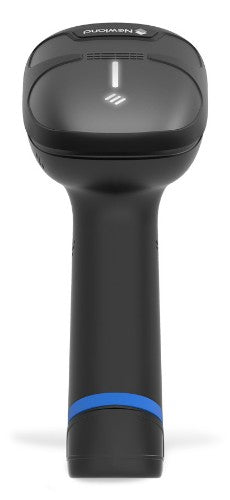

Newland HR33 Marlin AI Bluetooth Handheld bar code reader 1D/2D CMOS Black

SKU NLS-HR3300-BT-V2
£138.45
£138.45
In stock 309 left

1D/2D, 2600 mAh, Bluetooth 5.0, 117.5 x 67.5 x 144 mm

Key Features

  • Customize the scanner’s behavior with Advanced Scripting
  • AI-powered barcode detection technology to detect, locate, and read barcodes
  • Minimize interruptions with the easily replaceable battery

Description

The HR33 Marlin AI Bluetooth is an enhanced version of the Marlin Series. Now equipped with AI-powered barcode detection, it maintains cutting-edge scanning and decoding capabilities while showcasing premium quality. Advanced Scripting, laser aiming, and Acuscan technology are combined in a lightweight, ergonomic design built for high-intensity scanning. With its easily replaceable battery, the HR33 Marlin AI Bluetooth supports uninterrupted operation throughout demanding workflows.

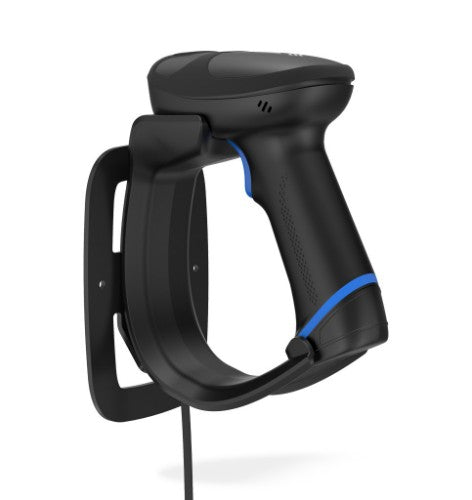

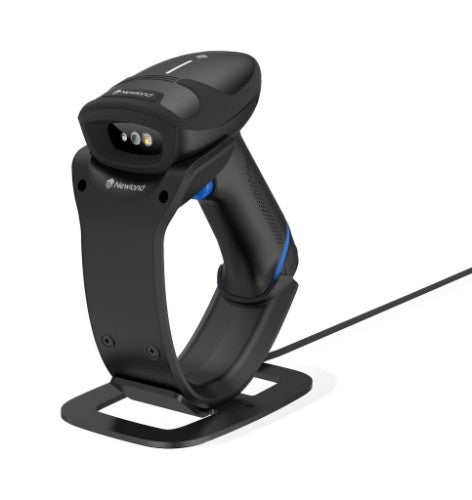

The HR33 Marlin AI Bluetooth offers over 12 hours of continuous use on a single charge. If the battery runs out, the compartment features a latch-release opening for convenient replacement without interrupting your tasks. Additionally, the low-battery indicator features two colors, providing a quick visual cue when it's time to change the battery. The new magnetic contact on the stand ensures easy connectivity and high reliability.

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported AIM-128, China Post, Codabar, Code 11, Code 128, Code 128A, Code 128B, Code 128C, Code 39, Code 93, EAN-13, EAN-8, GS1 Composite, GS1 DataBar, GS1-128 (UCC/EAN-128), ISBN, ISBT 128, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, MSI-Plessey, Plessey, Standard 2 of 5, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported Aztec Code, Chinese Sensible Code, Data Matrix, DotCode, GM Code, MaxiCode, Micro QR Code, PDF417, QR Code
Tilt reading angle 0 - 60°
Sensor type CMOS
Scanner type 1D/2D
Pitch reading angle 0 - 60°
Optical sensor resolution (W x H) 1280 x 800 pixels
Trigger mode Manual
OCR types supported Passport OCR, Chinese ID Card, China Travel Permit OCR
Laser guide Yes
2D resolution (min) 3 mm
1D resolution (min) 3 mm
Horizontal field of view 48°
Vertical field of view 30°
Ports & interfaces
Wireless range 100 m
Connectivity technology Wired & Wireless
Bluetooth version 5.0
Operating frequency 2400 MHz
Standard interfaces Bluetooth, USB
Performance
Protection features Drop resistant
LED indicators Yes
International Protection (IP) code IP52
Product colour Black
Buzzer Yes
Ambient lighting Yes
Print contrast 15%
Design
Type Handheld bar code reader
Protection features Drop resistant
LED indicators Yes
International Protection (IP) code IP52
Product colour Black
Power
Power source type Battery
Number of batteries supported 1
Battery life 15 h
Charging time 6 h
Input voltage 5 V
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 2600 mAh
Charging port type USB Type-C
Weight & dimensions
Width 67.5 mm
Depth 117.5 mm
Height 144 mm
Weight 210 g
Base weight 340.5 g
Technical details
Type Handheld bar code reader
Protection features Drop resistant
LED indicators Yes
International Protection (IP) code IP52
Product colour Black
Buzzer Yes
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Packaging data
Charging base Yes
Cables included USB
Stand included Yes
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -20 - 50 °C
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Drop resistance 1.8 m
Battery
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 2600 mAh
Packaging content
Charging base Yes
Cables included USB
