Newland

Newland FM3051 Fixed bar code reader 1D/2D CMOS Black

SKU NLS-FM3051-20
£157.79
£119.32
£157.79
£119.32
Only 18 left

Newland

Newland FM3051 Fixed bar code reader 1D/2D CMOS Black

SKU NLS-FM3051-20
£157.79
£119.32

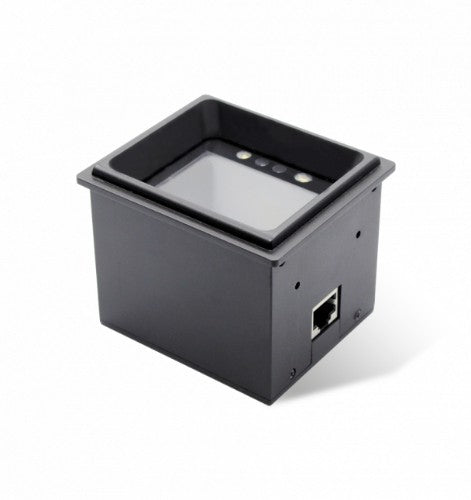

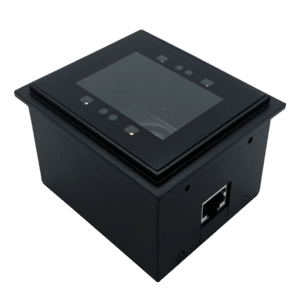

Newland FM3051 Fixed bar code reader 1D/2D CMOS Black

2D CMOS fixed mounted reader for kiosk integration, optimized to read from cell phone & paper, w / data formatting & USB cable

Description

With its snappy barcode reading of virtually any 1D or 2D barcode, the FM3051 Grouper is the perfect response to the trend of barcodes moving from paper to the screen. Built to read from contemporary LCD widescreen devices, the fixed scanner is ideal for mobile phone applications like loyalty programs and ticket validation. Whether it’s an employee scanning a productlabel or a customer scanning a voucher on their mobile phone, barcode scanning is always easy and quick.

A plug-and-play simplicity enhances your experience right from the start

The form factor of the FM3051 Grouper makes it easy to integrate into a kiosk or POS and a small footprint allows it to fit seamlessly into any environment. Depending on what suits your business, the device is also available as a flush mount: the FM3056 Grouper.

Superior decoding performance

Your employees can scan virtually any barcode, including 1D and 2D, at an extraordinary speed.

Effortless scanning from mobile phone screen

Built to read from an LCD screen, the FM3051 Grouper can easily read barcodes from any mobile device screen. An extended capability of IR reading allows the device to detect barcodes under virtually any ambient light. Whether you operate at daytime or nighttime, scanning is quick and efficient.

Easily mounted in small spaces

The FM3051 Grouper is designed for businesses that require high performance and a minimal footprint. With its small size, the device is ideal for kiosk integration and other POS solutions.

Easy to install

The FM3051 Grouper can be set up quickly and easily. A plug-and-play simplicity enhances your experience right from the start. The device can be further configured according to your needs by using a simple barcode programming guide.

Application scenarios

POS Solutions, kiosk integration, scanning from a mobile phone screen, such as for loyalty programs or ticket validation.

Specifications

Scanning
Type Fixed bar code reader
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, Plessey, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported Data Matrix, PDF417, QR Code
Sensor type CMOS
Scanner type 1D/2D
Pitch reading angle -40 - 40°
Optical sensor resolution (W x H) 752 x 480 pixels
Ports & interfaces
Connectivity technology Wired
Standard interfaces USB
Performance
LED indicators Yes
Housing material Acrylonitrile butadiene styrene (ABS), Aluminium
Built-in processor Yes
Product colour Black
Certification FCC ,KC
Buzzer Yes
Design
Type Fixed bar code reader
LED indicators Yes
Housing material Acrylonitrile butadiene styrene (ABS), Aluminium
Product colour Black
Certification FCC ,KC
Power
Power consumption 108 mA
Power source type DC
Power consumption (typical) 0.534 W
Input frequency 50 / 60 Hz
Input voltage 100 - 240 V
AC adapter output voltage 5 V
Weight & dimensions
Width 78.7 mm
Depth 67.7 mm
Height 62.5 mm
Weight 195 g
Technical details
Type Fixed bar code reader
LED indicators Yes
Housing material Acrylonitrile butadiene styrene (ABS), Aluminium
Built-in processor Yes
Product colour Black
Certification FCC ,KC
Buzzer Yes
Sustainability compliance Yes
Compliance certificates CE
Packaging data
Cables included USB
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Packaging content
Cables included USB

  Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.
