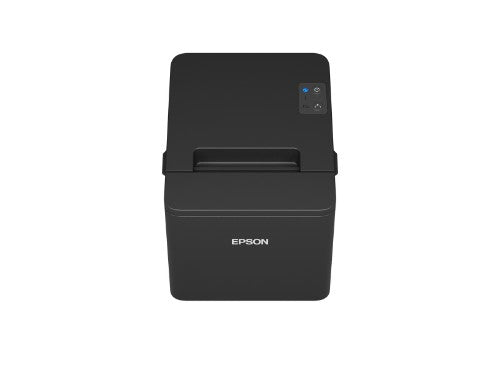

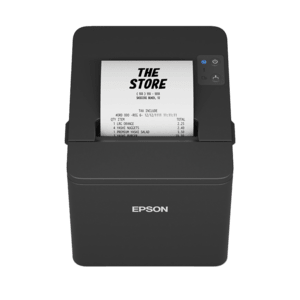

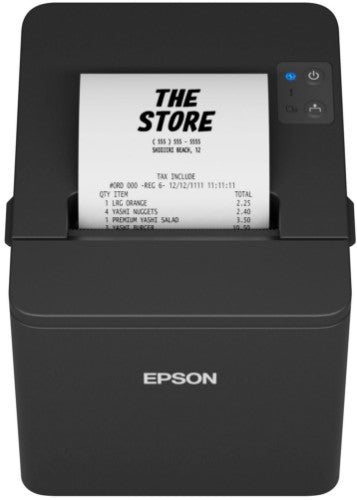

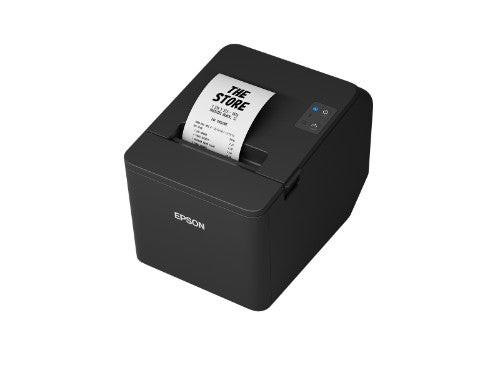

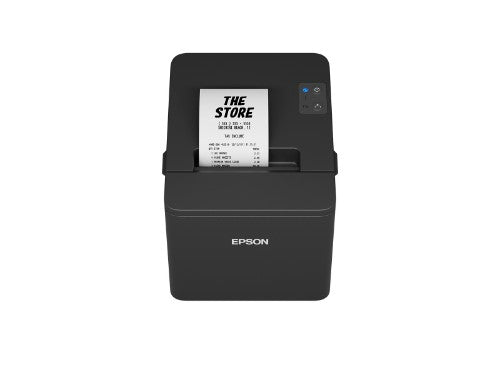

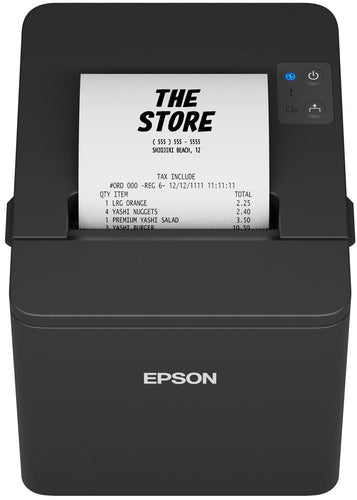

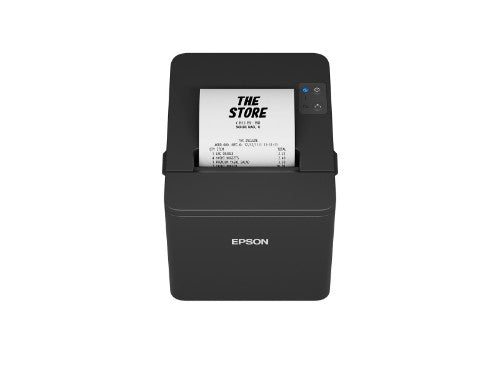

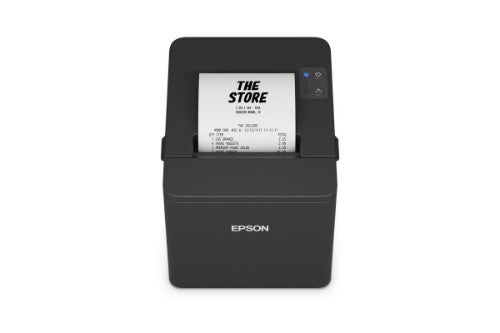

TM-T20IV(102):USB + Serial + Ether, PS, Blk, EU

Description

The combination of its fast print speeds, high reliability and economical operation, make this printer a must-have for small retail and speciality stores, hospitality venues and grocery stores.




Specifications

Printing
Colour No
Type POS printer
Print technology Thermal
Print speed 250 mm/sec
Maximum resolution 203 x 203 DPI
Character size 1.25 x 3 mm
Character density 22.6 cpi
Printing characters Graphic
Performance
Type POS printer
Print technology Thermal
Print speed 250 mm/sec
Maximum resolution 203 x 203 DPI
Character size 1.25 x 3 mm
Character density 22.6 cpi
Built-in barcodes CODABAR (NW-7), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E
Paper handling
Supported paper width 80 mm
Printing media thickness 53 - 75 µm
Maximum roll diameter 8.3 cm
Ports & interfaces
Connectivity technology Wired
USB 2.0 ports quantity 1
USB port Yes
USB connector USB Type-A
Serial interface Yes
Serial interface type RS-232
Optional connectivity Wireless LAN
Network
Ethernet LAN Yes
Ethernet LAN data rates 10,100 Mbit/s
Wi-Fi No
Print technology
Type POS printer
Print technology Thermal
Print speed 250 mm/sec
Character size 1.25 x 3 mm
Character density 22.6 cpi
Print quality
Maximum resolution 203 x 203 DPI
Technical details
Mean cycles between failures (MCBF) 60000000
Built-in sensors details Paper End Sensor, Paper Near End Sensor
Windows operating systems supported Yes
Mobile operating systems supported Android, iOS
Product colour Black
Built-in barcodes CODABAR (NW-7), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E
Autocutter durability 2 million cuts
Cutter Yes
Colour No
Compliance certificates Federal Communications Commission (FCC), ICES
Safety warning UL62368-1, CAN/CSA C22.2 No.62368-1
Features
Mean cycles between failures (MCBF) 60000000
Built-in sensors details Paper End Sensor, Paper Near End Sensor
Mean time between failures (MTBF) 360000 h
Product colour Black
Built-in barcodes CODABAR (NW-7), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E
Autocutter durability 2 million cuts
Cutter Yes
Print head life 150 km
Wall mountable Yes
Receive buffer 4 KB
Design
Product colour Black
Endurance
Mean time between failures (MTBF) 360000 h
Power
AC input voltage 100 - 230 V
AC input frequency 50/60 Hz
Power source type DC
Power consumption (printing) 27.2 W
DC output voltage 24 V
Power consumption (standby) 0.96 W
Operational conditions
Storage temperature (T-T) -10 - 50 °C
Storage relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 5 - 45 °C
Operating relative humidity (H-H) 10 - 90%
System requirements
Windows operating systems supported Yes
Mobile operating systems supported Android, iOS
Weight & dimensions
Width 140 mm
Depth 199 mm
Height 146 mm
Weight 1.7 kg
Packaging data
Cables included AC
Packaging content
Cables included AC
AC adapter included Yes
Software
Windows operating systems supported Yes
Mobile operating systems supported Android, iOS
Other features
Mean cycles between failures (MCBF) 60000000
Print head life 150 km
