Brother

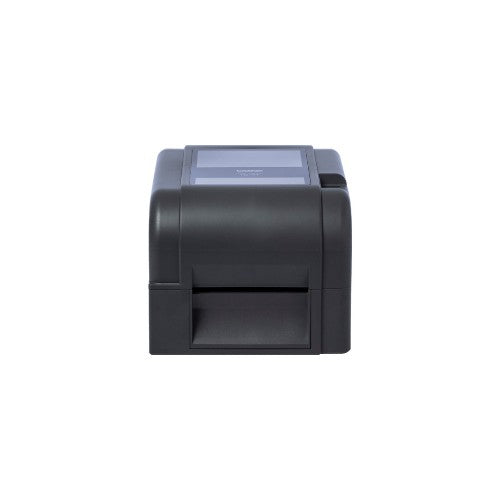

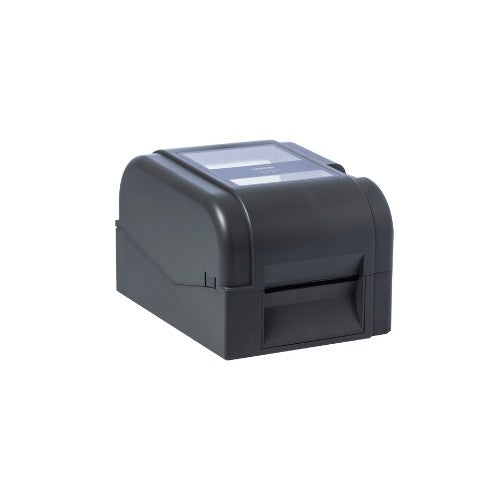

Brother TD-4420TN label printer Direct thermal / Thermal transfer 203 x 203 DPI 152 mm/sec Wired Ethernet LAN

SKU TD4420TNZ1
£325.51
£325.51
Only 20 left
Which labels and ribbons fit? See the exact sizes, cores and ribbons for the Brother TD-4 →

Print high-quality, continuous labels using media up to 112mm/4.41-inch wide.

Key Features

  • 203dpi printing for crisp text and barcodes
  • Up to 152mm/second (6 ips) print speed
  • USB, wired ethernet and serial ports as standard
  • Supports popular printer languages including ZPL/ZPL2, EPL and DPL
  • Free label design software available via download

Reasons To Buy

Thermal transfer printing for ultimate flexibility

An industry standard 203dpi print resolution gives you crisp, easy-to-read logos, images and barcodes on coated and uncoated label stock using thermal transfer media and ink ribbons.

Thermal transfer print ribbons in wax or resin material to suit your application

Standard or premium high capacity ribbons of up to 300 metres can be used, and are available in wax for standard paper media, wax/resin for improved resistance to chemicals on paper and synthetic media or resin for the best durability against heat and chemicals.

Supports industry standard printer commands

In addition to printing from Windows using the standard printer driver, you can integrate the Brother TD-4420TN label printer into your legacy systems thanks to ZPL/ZPL2 or EPL printer commands.

High print speed to improve efficiency

Printing at speeds up to 152mm/second (6 inches per second) ensures staff will have their labels almost immediately, and can spend their time being more productive.

Wired connectivity to meet your exact needs

USB, Ethernet and Serial ports are included as standard, ensuring the Brother TD-4420TN will connect to your current equipment and infrastructure without problem.

A range of accessories to improve staff efficiency

Improve productivity by adding an optional label peeler, label cutter or external roll holder to use much larger capacity rolls and reduce printer downtime.

Description

The TD-4420TN uses innovative thermal transfer technology to create durable labels that stand up to the toughest of tests. SAP and BarTender compatibility* ensure it fits perfectly into your workflows, and there’s the added bonus of customisation options like label peelers, cutters and external roll holders. Plus, you can also use the in-built direct thermal technology to print high-volume, low-cost labels for everyday usage.

Specifications

Print quality
Maximum resolution 203 x 203 DPI
Maximum print height 10.8 cm
Printing
Colour No
Print speed 6 lpm
Print speed 152 mm/sec
Maximum resolution 203 x 203 DPI
Maximum print height 10.8 cm
Print technology Direct thermal / Thermal transfer
Maximum print length 25.4 m
Design
LED indicators Yes
Display No
Product colour Black
Built-in display No
Display
Display No
Network
Wi-Fi No
Ethernet LAN Yes
Memory
Internal memory 64 MB
Flash memory 128 MB
Paper handling
Maximum roll diameter 12.7 cm
Maximum label width 11.2 cm
Core diameter 2.54 cm
Ports & interfaces
USB 2.0 ports quantity 2
RS-232 ports 1
Connectivity technology Wired
Bluetooth No
Wi-Fi No
Ethernet LAN Yes
USB port Yes
Performance
Languages support Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Swedish
Number of languages 11
Built-in barcodes GS1 DataMatrix, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, LOGMARS, MSI, MaxiCode, MicroPDF417, PDF417, PLESSEY, POSTNET, QR Code, UPC-A, UPC-E
Number of fonts 8
Internal memory 64 MB
Flash memory 128 MB
Page description languages DPL, EPL, ZPL, ZPL II
Power
AC adapter output current 2 A
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Technical details
Server operating systems supported Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported Windows 10, Windows 7, Windows 8, Windows 8.1
Warranty card Yes
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Product colour Black
Built-in barcodes GS1 DataMatrix, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, LOGMARS, MSI, MaxiCode, MicroPDF417, PDF417, PLESSEY, POSTNET, QR Code, UPC-A, UPC-E
Number of fonts 8
Maximum label width 11.2 cm
LED indicators Yes
Country of origin China
Products per pallet 48 pc(s)
Layers per pallet 6 pc(s)
Master (outer) cases per pallet 48 pc(s)
Harmonized System (HS) code 84433210
Pallet type 800 x 1200 mm
System requirements
Linux operating systems supported Yes
Server operating systems supported Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported Windows 10, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Operational conditions
Storage temperature (T-T) -40 - 60 °C
Storage relative humidity (H-H) 25 - 85%
Operating temperature (T-T) 10 - 90 °C
Operating relative humidity (H-H) 5 - 40%
Weight & dimensions
Width 275 mm
Depth 405 mm
Height 245 mm
Weight 3.15 kg
Package weight 3.93 kg
Packaging data
Package weight 3.93 kg
Quantity per pack 1 pc(s)
Packaging content
Software development kit (SDK) Yes
AC adapter included Yes
Warranty card Yes
Quick start guide Yes
Cables included AC, USB
Starter roll included Yes
Quantity per pack 1 pc(s)
Other features
Products per pallet 48 pc(s)
Layers per pallet 6 pc(s)
Master (outer) cases per pallet 48 pc(s)
Quantity per pack 1 pc(s)
Languages support Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Swedish
Number of languages 11
LED indicators Yes
Country of origin China
Spare part retention 5 year(s)
Logistics data
Pallet gross height 16.2 cm
Master (outer) cases per pallet layer 8 pc(s)
Pallet gross weight 211.9 kg
Products per pallet 48 pc(s)
Layers per pallet 6 pc(s)
Master (outer) cases per pallet 48 pc(s)
Harmonized System (HS) code 84433210
