Zebra

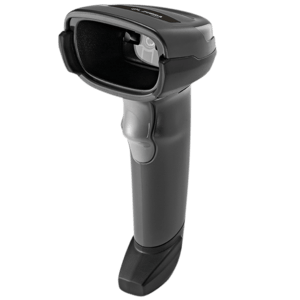

Zebra DS2208 Handheld bar code reader 1D/2D LED Black

SKU DS2208-SR00007ZZWW
£127.81
£70.95
£127.81
£70.95
In stock 710 left

Zebra

Zebra DS2208 Handheld bar code reader 1D/2D LED Black

SKU DS2208-SR00007ZZWW
£127.81
£70.95
Zebra DS2208 Handheld bar code reader 1D/2D LED Black

Corded handheld imager, 1D/2D, 161.6 g, Twilight black, Wired, USB/RS-232/RS-485/Keyboard Wedge

Description

AFFORDABILITY AND SIMPLICITY DELIVERED
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.

Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.

But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.

EASY TO DEPLOY
Deployment couldn’t be simpler. The DS2200 Series is pre-configured and ready to use right out of the box. Just plug the DS2200 Series into your POS and our auto-host detect cables will automatically identify the interface and connect the imager for you. And if you want to customize your settings, our complimentary 123Scan software tool is so intuitive than even a first time user can easily create a single programming barcode that allows you to configure devices with one scan.

EASY TO USE
The DS2200 Series is so easy to use, chances are your workers won’t even need training. With Zebra’s PRZM software decode algorithms, omni-directional scanning, a patent-pending intuitive aimer, an unsurpassed scanning range and more, the DS2200 Series provides workers with best-in-class first time, every time scanning with point and shoot simplicity — regardless of barcode condition. And with a Bluetooth model that offers the easiest pairing on the planet and a guaranteed 14 hours of power, workers get a superior wireless experience.

EASY TO MANAGE
Management is simple — no experienced IT personnel required. Our no-cost tools make it easy to manage scanners in all your locations and develop a custom scanning application to best meet your specific business needs.

Specifications

Scanning
Type Handheld bar code reader
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39
Motion tolerance (cm/s) 13
Wavelength 645 nm
Tilt reading angle -65 - 65°
Sensor type LED
Scanner type 1D/2D
Pitch reading angle -65 - 65°
Optical sensor resolution (W x H) 640 x 480 pixels
Ports & interfaces
Connectivity technology Wired
USB version 2.0
Standard interfaces USB, RS-232, RS-485, Keyboard wedge
Performance
LED indicators Yes
Built-in display No
International Protection (IP) code IP42
Product colour Black
Design
Type Handheld bar code reader
LED indicators Yes
International Protection (IP) code IP42
Product colour Black
Power
Power consumption 250 mA
Power source type DC, USB
Input voltage 4.5 - 5.5 V
Weight & dimensions
Width 66 mm
Depth 99 mm
Height 165 mm
Weight 161.6 g
Technical details
Type Handheld bar code reader
LED indicators Yes
Built-in display No
International Protection (IP) code IP42
Product colour Black
Harmonized System (HS) code 84716070
Compliance certificates RoHS
Packaging data
Charging base No
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 5 - 95%
Packaging content
Charging base No
Logistics data
Harmonized System (HS) code 84716070

  Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.   Note: Products do not come with cables or accessories unless specifically stated.
