Datalogic

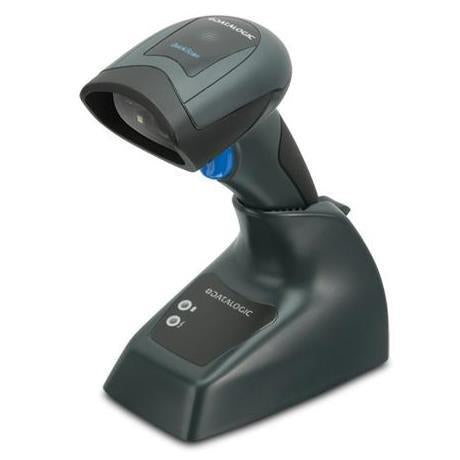

Datalogic QuickScan Mobile QM2131 Handheld bar code reader 1D CCD Black

SKU QM2131-BK-433K1
£121.83
£121.83
In stock 379 left

Datalogic

Datalogic QuickScan Mobile QM2131 Handheld bar code reader 1D CCD Black

SKU QM2131-BK-433K1
£121.83
Datalogic QuickScan Mobile QM2131 Handheld bar code reader 1D CCD Black

QuickScan Mobile QM2130, 433 MHz, Kit, USB, Linear Imager, Black

Description

LINEAR DECODING

Today there is an increased trend towards 2D bar codes, however, linear bar codes are still dominant in the automatic data capture industry. Long bar codes are commonly used in a variety of applications including utilities bills, document processing and packaging. These long codes are a challenge for full
area imagers to read due to their narrow field of view and shorter depth of field.

ENHANCED PERFORMANCE

The QuickScan QM2131 imager’s extrawide field of view and extra-long scan line makes reading long bar codes in closer distances much easier. The sharp and highly visible scan line makes the scanner more user-friendly to use, while the enhanced depth of field enables bar codes to be read at an intuitive distance. The stylish design is the signature of the QuickScan series, completing a consistent family appearance.

CORDLESS FEATURES

Featuring Datalogic’s STAR 2.0 Cordless System for narrow band 433 MHz radio communications, the QM2131 linear imager provides secure radio communications with no risk of interference from Wi-Fi infrastructure and very low sensitivity to obstacles like concrete walls, wood or metal shelves.
An innovative, long lasting and user replaceable Li-Ion battery package allows the simultaneous replacement of battery and scanner contacts for a refresh of the most significant parts related to a mobile product’s functionality. A microUSB port on the scanner foot allows an auxiliary method for
battery recharging and host download configuration, and also allows the product to be used without the cradle.

Specifications

Scanning
Type Handheld bar code reader
Yaw reading angle 0 - 70°
Tilt reading angle 0 - 45°
Sensor type CCD
Scanner type 1D
Read rate (max) 400 reads/s
Pitch reading angle 0 - 65°
Light levels (direct sunlight) 0 - 120000 lx
Ports & interfaces
Connectivity technology Wired & Wireless
Operating frequency 433 MHz
Cable length 1.5 m
Standard interfaces USB
Performance
LED indicators Power
International Protection (IP) code IP42
Product colour Black
Certification China RoHS, EU RoHS
Light levels (direct sunlight) 0 - 120000 lx
Design
Type Handheld bar code reader
LED indicators Power
International Protection (IP) code IP42
Product colour Black
Certification China RoHS, EU RoHS
Power
Power source type Battery, DC
Charging time 4 h
Number of reads per charge 30000
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 1400 mAh
Weight & dimensions
Width 91 mm
Depth 41 mm
Height 163 mm
Weight 190 g
Base weight 215 g
Technical details
Type Handheld bar code reader
LED indicators Power
International Protection (IP) code IP42
Product colour Black
Certification China RoHS, EU RoHS
Harmonized System (HS) code 84716070
Packaging data
Cables included USB
Operational conditions
Storage temperature (T-T) 40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 0 - 50%
Light levels (direct sunlight) 0 - 120000 lx
Packaging content
Cables included USB
Logistics data
Harmonized System (HS) code 84716070
